JRT Gearmotors

JRTK Helical-Bevel Gearmotors

JRT intelligent gearmotors, with independent intellectual property rights, is featured with beautiful appearance, low noise, no oil leakage, fast delivery, which is intelligent and trouble-free. It includes JRTR helical inline gearmotor, JRTF parallel shaft helical gearmotor, JRTK helical bevel gearmotor and JRTS helical worm gearmotor.

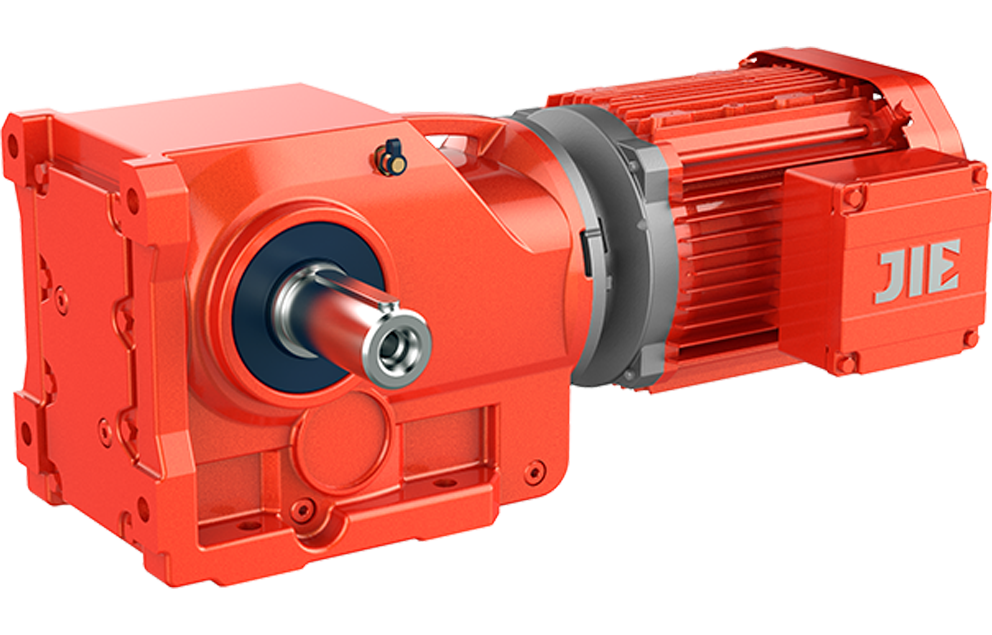

  • K..Series

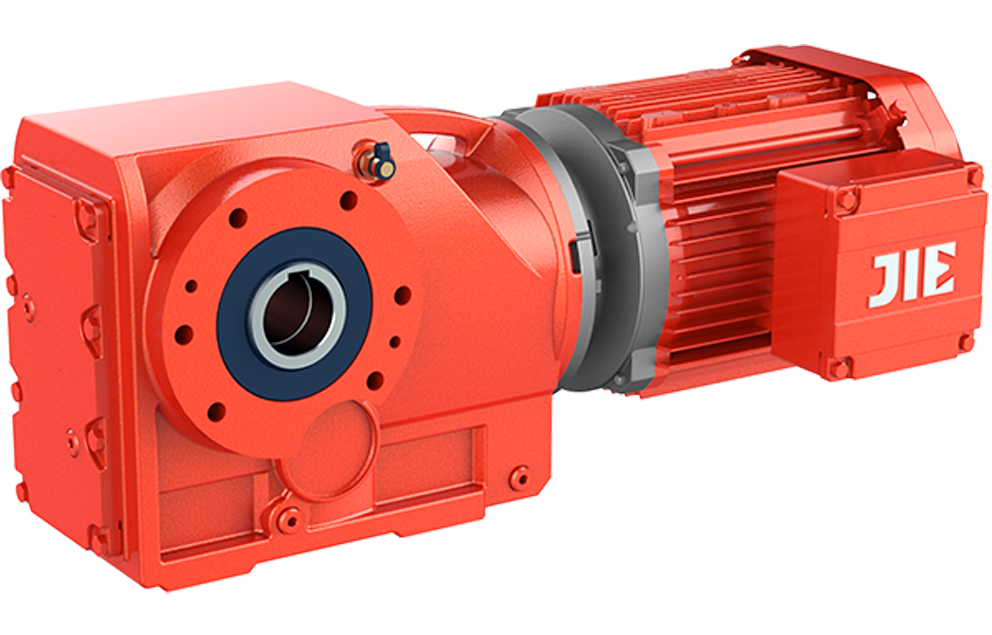

  • KA..Series

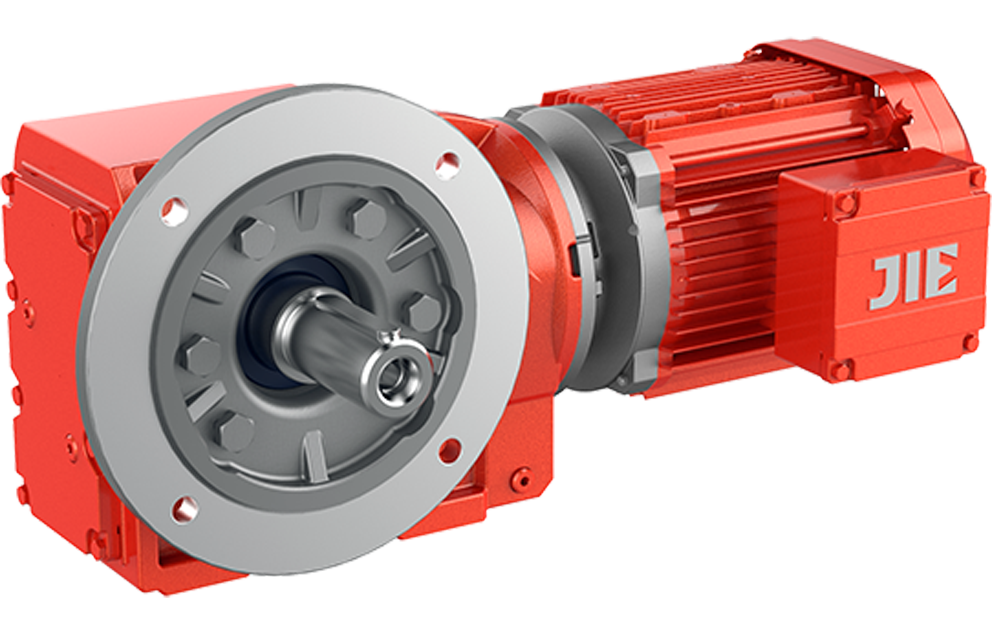

  • KF..Series

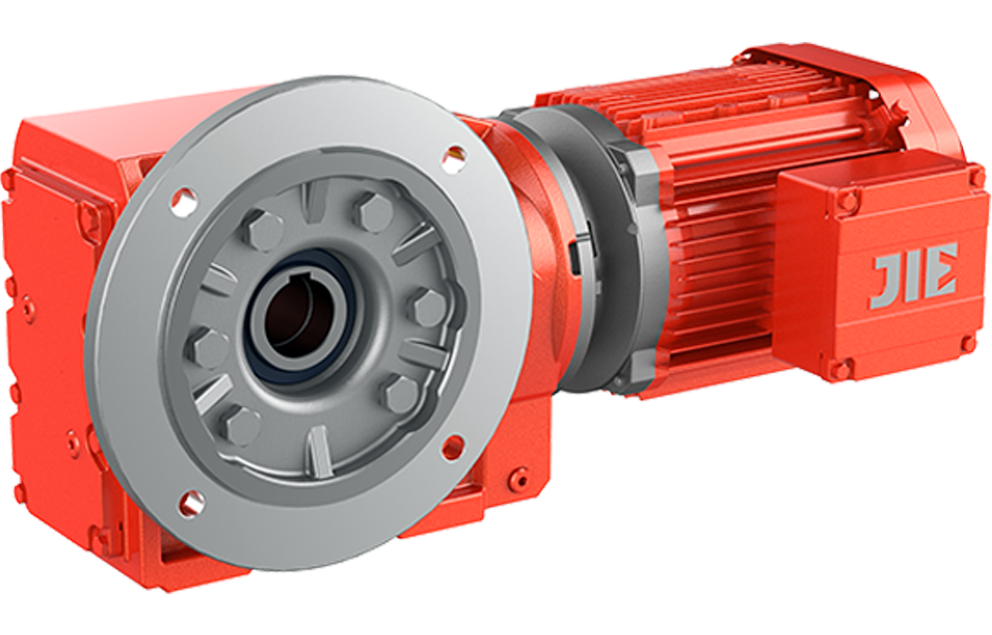

  • KAF..Series
Configure your individual product

Details about your individual product

CAD data and documentation for your configuration

Start configuring the product now
  • Technical Parameters Download
    reducer motor
    Model Specifications Maximum torque cabin seat no power
    K39 200N·m DN63S4-100L4 0.12-3kW
    K49 400N·m DN63S4-100L4 0.12-3kW
    K59 600N·m DN63S4-112M4 0.12-4kW
    K69 820N·m DN63S4-132M4 0.12-7.5kW
    K79 1550N·m DN63S4-160M4 0.12-11kW
    K89 2700N·m DN80S4-180L4 0.55-22kW
    K99 4300N·m DN90S4-200L4 1.1-30kW
    K109 8000N·m DN100S4-225M4 2.2-45kW
    K129 13000N·m DN132M4-225M4 7.5-45kW
    K159 18000N·m DN160M4-225M4 11-45kW
    K169 32000N·m DN160M4-225M4 11-45kW
    K189 50000N·m DN160M4-225M4 11-45kW

  • Optional Modules

    Jie brand JRT geared motor follows the concept of modularization and optimization design. The whole series of products include geared motor, frequency conversion integrated geared motor, AD type solid shaft input interface, AM type IEC motor input interface, AQS type servo motor input interface, AN Type NEMA motor input interface, solid shaft output module, splined hollow shaft output module, shrink disc output module, flange output module, foot mounting, flange mounting, torque arm mounting and other input interfaces, output modules and installations Types, while supporting the modular combination and integration of multi-stage reducers and reducers of different models and specifications, and can be customized and manufactured according to customer needs.

  • Paint coating, nameplate identification, packaging scheme
    paint coating

    The coating is made of green paint products that meet the national environmental protection requirements. The paint does not contain toxic and harmful substances such as VOC, TDI, benzene/toluene, xylene, and heavy metals. It has super adhesion, weather resistance and corrosion resistance. It can be applied to ordinary outdoor medium corrosive environments and various indoor working conditions. And there is an enhanced coating system to adapt to heavy corrosion environment.

    Nameplate identification

    The nameplate adopts stainless steel laser printing process, which is clear and durable. At the same time, the product QR code is added, and product information and sales service information can be easily checked by scanning the QR code. There are various guiding signs pasted on the surface of the product, which can greatly reduce the risk of misuse.

    Packaging scheme

    The packing method is strong and durable, and all kinds of signs on the surface of the box are clear, which can fully meet the needs of automobile stacking or container logistics transportation. According to the product type and shipment quantity, the packing box is divided into carton packaging and wooden box packaging. The content of the box sticker includes: product specifications, Quantity and other information to facilitate delivery and receipt inspection

  • Optional Colours
    • grey blue RAL-7031
    • Gentian blue RAL-5010
