Worm Sets: Powering Efficiency and Precision in Industrial Applications

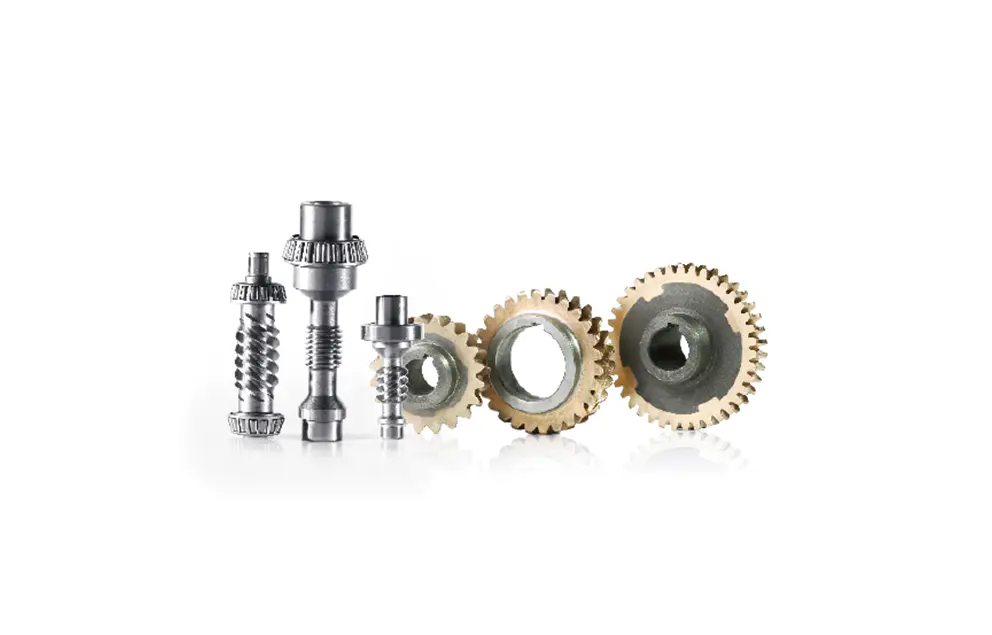

At Jie Group, a leading manufacturer of worm gear reducers, we understand the critical role worm sets play in driving industrial automation. These ingenious mechanisms, characterized by a screw-shaped worm meshing with a gear (worm wheel), offer a unique combination of benefits:

High Reduction Ratios in Compact Designs: Unlike gear pairs with limited reduction capabilities, worm sets excel at achieving massive speed reductions (often exceeding 100:1) within a compact footprint. This makes them ideal for applications where space is a premium, such as material handling equipment and robotics. For instance, a Jie Group JWB Series worm gear reducer with a 50:1 reduction ratio measures a mere 90 mm x 90 mm x 60 mm – a testament to our commitment to space optimization.

Exceptional Self-Locking Ability: A key advantage of worm sets is their self-locking property. The worm's thread geometry prevents the worm wheel from driving the worm in the reverse direction. This characteristic makes worm sets perfect for applications requiring static positioning under load, such as screw jacks and conveyor inclines. At Jie Group, we design our worm threads with a specific lead angle to achieve the desired level of self-locking, ensuring optimal performance in even the most demanding applications.

Smooth and Quiet Operation: Due to the continuous meshing between the worm and worm wheel, worm sets boast superior smoothness and quiet operation compared to gear pairs with intermittent tooth engagement. This minimizes noise generation, making them suitable for applications in noise-sensitive environments, such as food processing and medical equipment. Our manufacturing processes, incorporating high-precision machining and surface finishing techniques, further contribute to the quiet operation of Jie Group worm sets.

Material Selection and Efficiency Considerations:

Material Selection for Performance and Durability: The choice of materials for the worm and worm wheel significantly impacts performance and longevity. At Jie Group, we understand this and offer a variety of material combinations to cater to specific application requirements. For high-load applications, we utilize case-hardened steel worms paired with bronze worm wheels for exceptional wear resistance. For corrosion-resistant environments, we can provide stainless steel worm shafts and nickel-plated worm wheels.

Balancing Efficiency and Heat Dissipation: Worm sets inherently have lower efficiency compared to other gear types due to sliding friction between the worm and worm wheel. However, at Jie Group, we prioritize efficiency through optimized worm thread design and the use of high-quality lubricants. We also incorporate features like heat dissipation fins on our worm gear reducers to manage thermal loads in high-duty applications.

Case Study: Optimizing Conveyor Performance with JWB Worm Gear Reducers

A leading manufacturer of bottling equipment approached Jie Group to address challenges with their existing conveyor system. The primary concerns were:

Limited Space: The conveyor design had limited space for a speed reduction mechanism.

High Reduction Ratio: The application demanded a significant reduction in motor speed to achieve the desired conveyor belt speed.

Self-Locking Capability: The conveyor needed to maintain a static position when loaded with bottles to prevent rollback.

Our engineers recommended the JWB Series worm gear reducer with a 75:1 reduction ratio. The compact design of the JWB series fit perfectly within the space constraints. The high reduction ratio ensured the desired conveyor speed, and the self-locking property prevented the conveyor from rolling back when loaded. The result? A smooth-operating, space-saving conveyor system that met the client's exact needs.

By understanding the unique characteristics and considerations of worm sets, manufacturers can leverage their advantages to optimize performance, efficiency, and precision in their industrial applications. At Jie Group, with our extensive experience and commitment to innovation, we are dedicated to providing high-quality worm gear reducers that empower your industrial automation endeavors.
