Bevel Gear Sets: A Comprehensive Guide to Their Design, Applications, and Benefits

Bevel gears are a type of gear that transmits power between intersecting shafts that are at an angle to each other. They are commonly used in a wide range of applications, including automobiles, machinery, and robotics. Bevel gears are available in a variety of sizes and materials, and they can be manufactured to meet specific performance requirements.

How Bevel Gears Work

Gears in motion

Bevel gears work by the principle of tooth contact. The teeth of the two gears mesh together, and the force of one gear pushes against the teeth of the other gear, causing it to rotate. The angle of the teeth on a bevel gear determines the angle of the shaft that it can be used on. Bevel gears can be used with shafts that are at any angle to each other, from 0 degrees to 90 degrees.

Types of Bevel Gears

There are three main types of bevel gears:

Crown gears: These gears have a circular pitch line and are used with mating pinion gears.

Mitre gears: These gears have a 90-degree angle between the axes of the two gears.

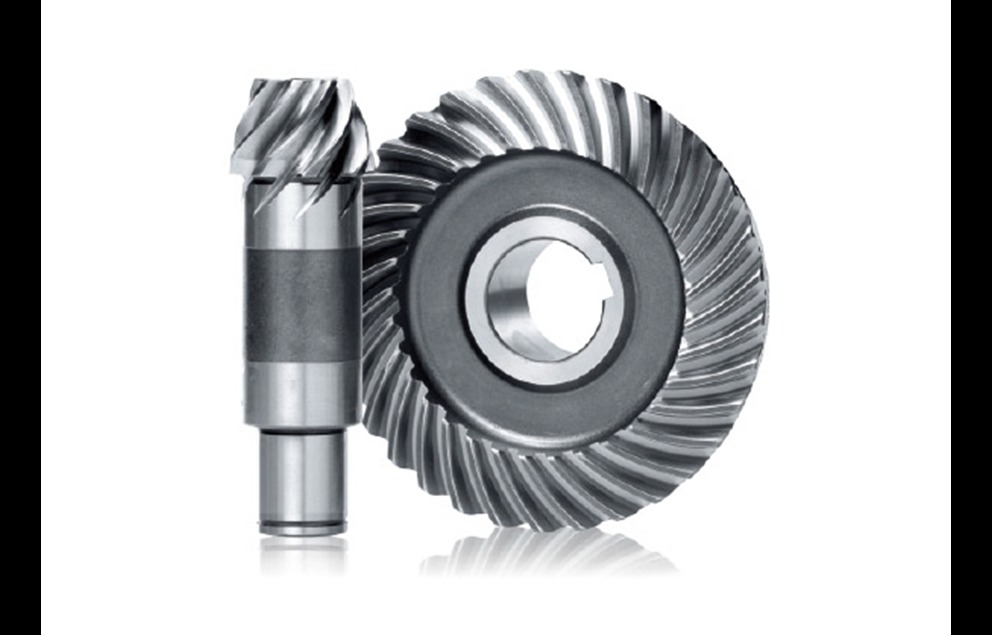

Spiral bevel gears: These gears have a helical tooth pattern and are used to transmit power between shafts that are at an angle to each other.

Applications of Bevel Gear Sets

Bevel gears in action

Bevel gear sets are used in a wide variety of applications, including:

Automobiles: Bevel gears are used in the differential of automobiles to transmit power from the driveshaft to the wheels.

Machinery: Bevel gears are used in a variety of machines, such as gearboxes, pumps, and compressors.

Robotics: Bevel gears are used in robots to transmit power between the motors and the joints.

Benefits of Bevel Gear Sets

Bevel gear sets offer a number of benefits, including:

High efficiency: Bevel gears can transmit power with very little loss of efficiency.

Quiet operation: Bevel gears can operate very quietly, making them ideal for use in applications where noise is a concern.

Durability: Bevel gears can be made from a variety of durable materials, such as steel and cast iron.

Versatility: Bevel gears can be used with shafts that are at any angle to each other.

Design of Bevel Gear Sets

The design of bevel gear sets is a complex process that involves a number of factors, including:

The angle of the shafts: The angle of the shafts determines the type of bevel gears that can be used.

The speed of the shafts: The speed of the shafts determines the size and material of the bevel gears that can be used.

The torque: The torque determines the size and material of the bevel gears that can be used.

The efficiency: The efficiency of the bevel gears can be improved by using a higher tooth count and a finer pitch.

The noise level: The noise level of the bevel gears can be reduced by using a helical tooth pattern and a crowned tooth profile.

Selection of Bevel Gear Sets

The selection of bevel gear sets is an important process that should be done carefully to ensure that the selected gears meet the requirements of the application. The following factors should be considered when selecting bevel gear sets:

The angle of the shafts: The angle of the shafts determines the type of bevel gears that can be used.

The speed of the shafts: The speed of the shafts determines the size and material of the bevel gears that can be used.

The torque: The torque determines the size and material of the bevel gears that can be used.

The efficiency: The efficiency of the bevel gears can be improved by using a higher tooth count and a finer pitch.

The noise level: The noise level of the bevel gears can be reduced by using a helical tooth pattern and a crowned tooth profile.
